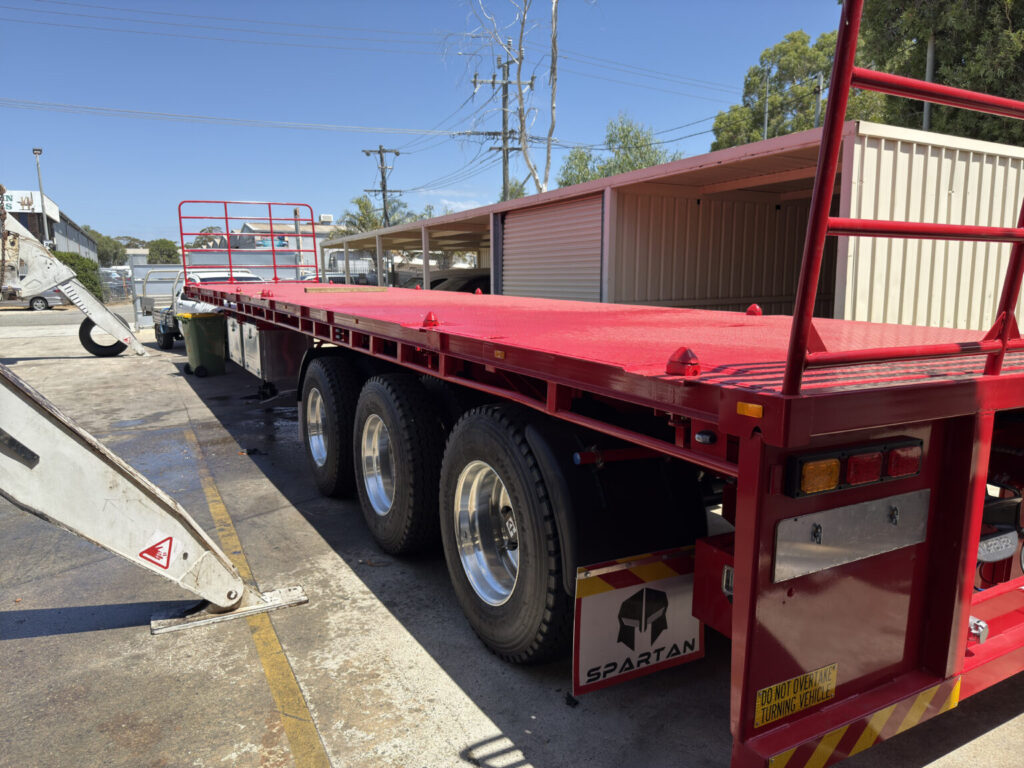

Telescopic Trailers for Oversized Loads
Spartan Quip manufactures flat top extendable trailers for transporting long, heavy and oversized loads safely and efficiently. Our telescopic trailers feature an adjustable chassis to suit different freight lengths, making them ideal for steel, machinery, concrete and timber.
Built for Australian conditions, they deliver strength, stability and reliable load distribution for construction, mining, infrastructure and specialised transport.
Fast, easy and flexible
Receive instant quote and book your Extendable Trailers online.
Our Advantages
✔ Custom Engineered Solutions
✔ Built for Australian Conditions
✔ High-Quality Materials & Components
✔ Precision Manufacturing
✔ PBS Compliant Designs
✔ Up to 5-Year Structural Warranty
✔ Finance Available
✔ Ongoing Service & Support
Why Choose Spartan?
Spartan have a unique approach when it comes to providing customer experience. Our customer service is exceptional. We believe in adding a personal touch to our consultation with the customer so that it turns out to be fruitful. All our processes are done with full heart and soul.
Technical Specifications
|
Specification
|
Details
|
|---|---|
|
Capacity
|
ATM: 47T
|
|
Mainframe
|
High-tensile steel grade
|
|
Kingpin
|
Dual-position 90mm bolt-in (optional 50mm)
|
|
Brake kit
|
EBS multi-volt 12/24V Knoor-Bremse
|
|
Container pins
|
3-way
|
|
Axles
|
K-Hitch 22.5" drum brake axles (optional disc brake)
|
|
Suspension
|
K-Hitch tri-axle airbag (Optional FUWA FW 520 8-leaf spring)
|
|
Landing Legs
|
K-Hitch 2-speed / Jost
|
|
Wheels
|
10/285 PCD Aluminium Alloy
|
|
Tyres
|
11R 22.5
|
|
Lighting
|
Hella Full LED
|
|
Mudguards
|
Plastic radius guards with Spartan Trailers mudflaps (optional full SS or plastic)
|
|
Optional Extras
|
Road Train Kit
|
|
Hub Odometer
|
|
|
Ring Feeder
|
|
|
Hard Wired Flashing Beacon
|
|
|
Road Train / Long Vehicles Signs
|
|
|
Spare Wheel: Steel or Alloy
|
|
|
Custom Paint - Coaming Rails
|
|
|
Floor
|
5mm steel chequer plate forklift-rated
|
|
Turntable
|
K-Hitch 90mm bolt-in (optional 50mm)
|
|
Coaming
|
5-inch with tie rail (optional C-channel)
|
|
Spare wheel carrier
|
Dual (Optional Spare Wheels)
|
|
Water Tank
|
30L Stainless Steel
|
|
Toolboxes
|
T handle with stainless steel(SS) doors
|
|
Length
|
13.72m (closed)
|
|
22m (extended)
|
FAQs
The sliding deck allows the trailer length to be adjusted to suit the freight, providing better load positioning and support for long items. This makes it suitable for steel, machinery and other oversized loads.
Yes. The extendable deck can be adjusted according to the length of the freight. Operators can select a suitable deck position before travel to help maintain appropriate load distribution and securement.
Consider the freight dimensions, required deck length, payload, axle and suspension setup, load restraint needs and intended routes. Optional equipment can then be selected to suit your specific transport operation.
A road train kit is available as an optional extra on Spartan Quip extendable trailers. The appropriate coupling, air and electrical provisions can be configured to suit the intended combination and operating requirements.
Available options include a road train kit, coaming rails, custom paint, spare wheel carriers, hub odometers, flashing beacons, long vehicle signage and alternative suspension or braking configurations.
